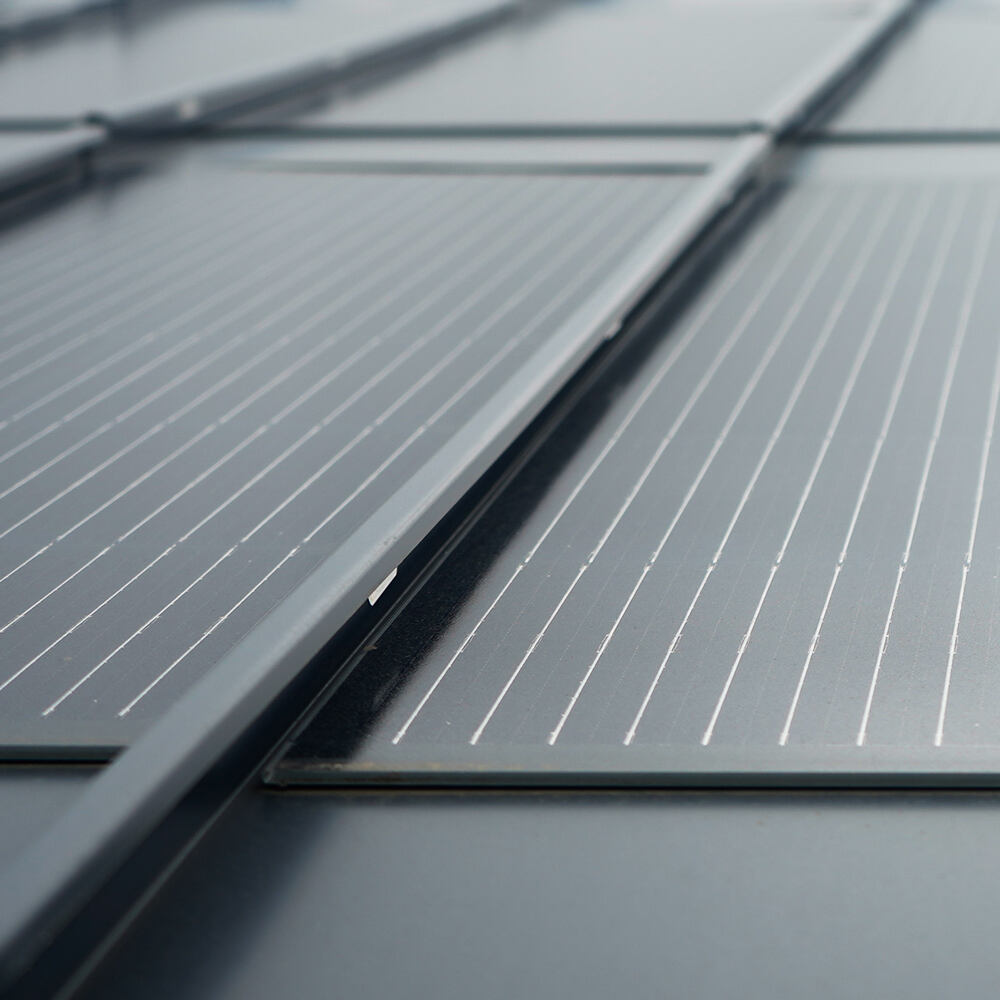

This series of solar tiles is based on a high-quality Aluminum magnesium manganese alloy plate, combined with high-quality PERC monocrystalline silicon cells. The product adopts a hidden layer locking mode, no fixed parts are exposed to air, which greatly improves the durability and visual appeal.

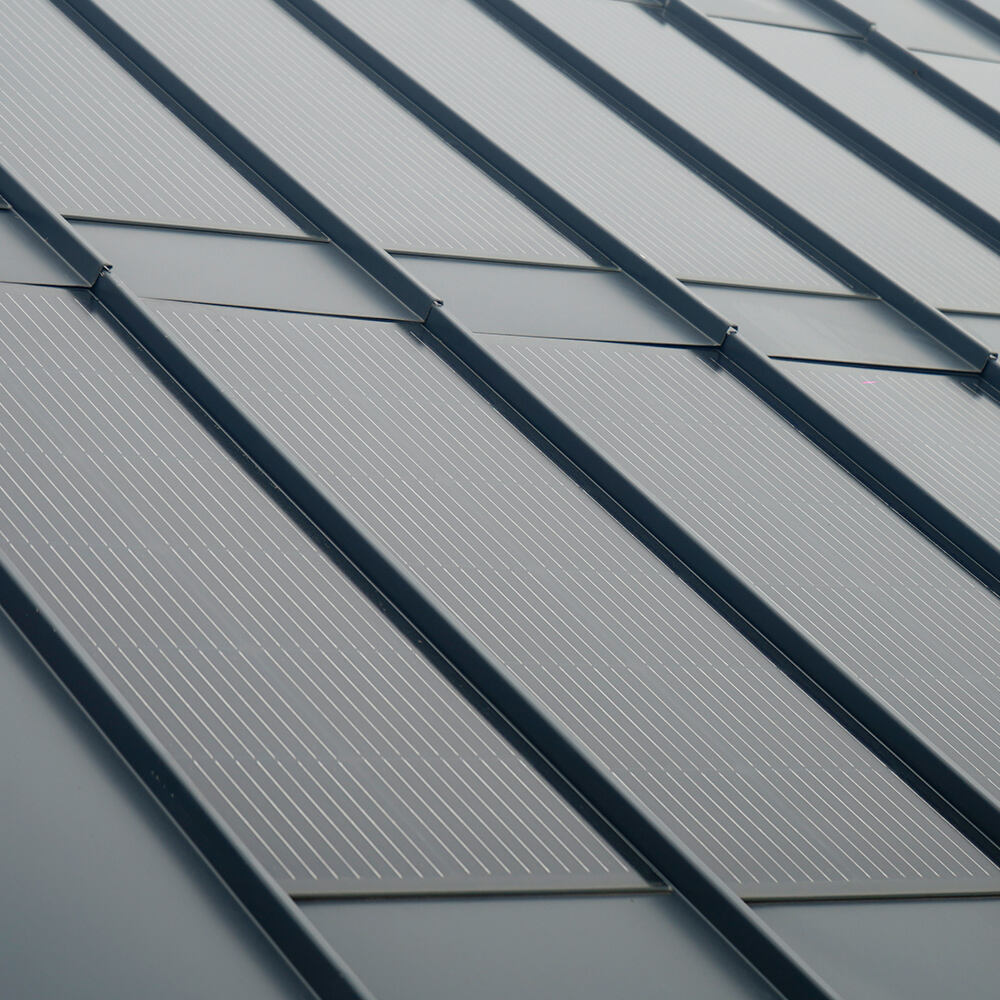

"Top Energy" B Series product comes in two types: solar panels that are adhesively bonded to the substrate, and those fixed with clamps. The adhesively bonded tile covers an area of 0.4 square meters, with a power output of 75 watts. The clamped tile employs dedicated clamps and can use standard photovoltaic panels. The B Series installation and related accessories use the relevant processes for vertical lock-edge metal tiles. The photovoltaic tile is installed facing the sun, with ordinary tiles easily replaced.

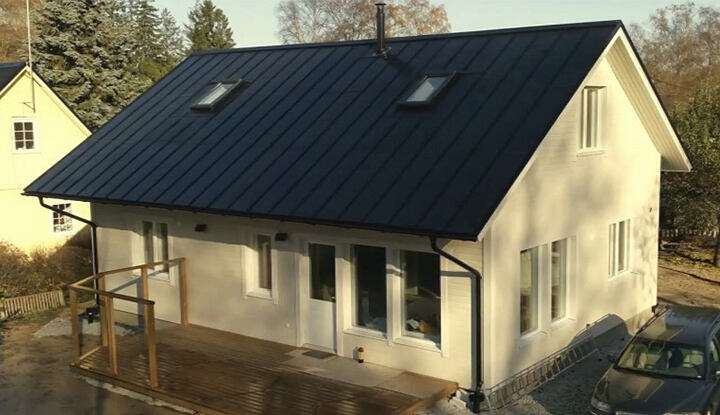

The B Series building-integrated photovoltaic tile is recommended for installation on the roofs of residential and commercial buildings that have a simple, minimalist style and a slope greater than 5 degrees, such as villas, residences, office buildings, and hotels. It is easy to install, waterproof, wind-resistant, safe, efficient, elegant, and cost-effective.
| Overall Dimensions | 1400mm×420mm（0.554㎡） | |
| Effective Dimensions | 1260mm×420mm（0.529㎡） | |
| Units /㎡ | 1.89 units/㎡ | |
| Weight | 5.5kg | |
| Base | aluminum magnesium manganesealloy plate（Al-Mg-Mn alloybuilding sheet） | |
| PV Module Materials | Cell Type | monocrystalline |
| Cell Amount | 12 piece | |
| Facing Material | 3.2mm super white coated temperedglass | |
| Backing Material | black double-sided fluor inatedcoating | |
| Cable Connectors | MC4 | |
| Electrical Characteristics | Max. output power | 75W |
| Open-circuit voltage | 8.1V | |
| Max.open-circuit voltage | 6V | |
| Short-circuit current | 12.72A | |
| Max. operating current | 9.48A | |
| Operating Characteristics | Operating temperature | -45℃~85℃ |
| Max. system voltage | 500V | |
| Operating Temperature | 45℃ | |
high-performance metal roofing products, the material itself is relatively light, its strength is high, strong corrosion resistance.
High energy conversion efficiency 21%. Use your every penny efficiently, and generate more electricity, with less effort.
Easy installation, time-saving, labor-saving, and cost-effective, share the install methods with stand seam steel roofing solution.
Not only saves your money on electricity bills but also makes your building worth more value in the real estates market
Photovoltaic components are integral to your rooftop. Bring your roof aesthetic.
Quacent is a world leading panelized/modular prefab house provider for 17 years to 50+ countries. Our BIPV (building integrated photovoltaic) dept. is specilized in BIPV products and use the brand of Top Energy®. Currently, we have released 3 Serials of Top Energy 2 in 1 solar tile/shingles, which are working with stone coated metal tile, stand seam steel roofing, and asphalt shingles. Those are all good to be used for new or replaced villa roofing, slopped roof. The advantage of our solar tile is: solar and tile 2 in 1, more aesthetic, easy to install (same to roofing), long life (steel base，50+ years), safe (no leakage, wind-resistant), material saving and labor saving., etc. Every tile can generate power. Live green become easy.
BIPV (Building Integrated Photovoltaics) and BAPV (Building Applied Photovoltaics) are two types of photovoltaic systems that differ in their installation methods. BIPV systems are integrated into the building structure and serve as a building material, while BAPV systems are applied to the building surface as an external layer. In summary, BIPV systems replace conventional building materials, while BAPV systems are added on top of existing building materials.
Our stone coated metal shingles can be used for more than 50 years. The Solar PV can be used for 25 years. (Permit to have 3% damp yearly) We provide 10-year replacement warranty for our shingles and solar for defective and broken. We provide 25 year warranty for the peak performance for the PV modules. (terms and conditions apply)
Top Energy Serial A 2 in 1 solar tile is recommended to be used for sloped roof (more than 15 degree), or renovated roof. For Solar tile, the best direction is to face the sun. So, south face section is the best, east and west are also ok if you need more space for the solar.. We suggest to install the regular tile for North Face.（above info for the Northern Hemisphere countries.the southern hemisphere countries on the contrary)(all directions of the roof can be installed in the equatorial countries )
Our stone coated metal tiles & the 2 in 1 solar tiles are pretty easy to be installed. The installation is similar to regular clay tile, but lighter & faster. However, for the 2 in 1 solar tiles installation, we still suggest you to hire an electrician to check at the start, middle and end. Generally speaking, one experienced worker should be able to install the stone coated metal roofing around 20-30 square meter (from the batten), and solar tile 15-25 square meters per day. We can send you the intallation video.
Dalian Quacent provides patented BIPV solar roof tile solutions that integrate energy generation with architecture, delivering efficient, safe, and cost-effective solar roofing systems.
